Name: Landslide Records

Display Field: SM_Name

Type: Feature Layer

Geometry Type: esriGeometryPoint

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P><SPAN>Landslide Records describe the slope movement feature through the attributed Fields and is placed at the approximate Head Scarp or Initiation Zone of a landslide. </SPAN><SPAN>Landslide Record placement is determined from field investigations, features visible in various vintages (1940–most current) of aerial photography and orthophotography, and a variety of derivatives from Light Detecting And Ranging (LiDAR) Digital Elevation Models (DEM). When possible Landslide Records have associated Landslide Footprints (polygon feature class). Fields of this layer include descriptions of slope movement type, location, dimensions, movement dates,</SPAN><SPAN> methods of mapping, detailed field observations about the morphology of a landslide, the timing and rate of movement, Head Scarp material and bedrock structure, and whether the landslide has been field verified.</SPAN></P></DIV></DIV></DIV>

Copyright Text: North Carolina Geological Survey (NCGS)

Default Visibility: true

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 142887.12513877303
YMin: 90264.676800001
XMax: 656603.6459999981
YMax: 308769.37757313607
Spatial Reference: 32119  (32119)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [255, 0, 0, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false
Supports Binning LOD: false
Supports Query With LOD Spatial Reference: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• Process_ID ( type: esriFieldTypeDouble, alias: Process ID , Range: [111111111111, 9.999999999989999E11] )
• Feature_ID ( type: esriFieldTypeDouble, alias: Feature ID , Range: [111111111111, 9.999999999989999E11] )
• SM_Name ( type: esriFieldTypeString, alias: Slope Movement Name, length: 50 )
• Project ( type: esriFieldTypeString, alias: Project, length: 30 , Coded Values: [Landslide Hazard Mapping: Landslide Hazard Mapping] , [Blue Ridge Parkway: Blue Ridge Parkway] , [Geohazards: Geohazards] , ...1 more... )
• County ( type: esriFieldTypeString, alias: County, length: 20 , Coded Values: [Alamance: Alamance] , [Alexander: Alexander] , [Alleghany: Alleghany] , ...97 more... )
• Quad ( type: esriFieldTypeString, alias: Quad, length: 30 , Coded Values: [Abbottburg: Abbottburg] , [Acme: Acme] , [Advance: Advance] , ...954 more... )
• Col_Date ( type: esriFieldTypeString, alias: Collection Date (yyyy/mm/dd), length: 15 )
• Later_Col ( type: esriFieldTypeString, alias: Later Collection Dates (yyyy/mm/dd), length: 150 )
• NCGS_Inves ( type: esriFieldTypeString, alias: NCGS Investigators, length: 50 )
• Mvmnt_Date ( type: esriFieldTypeString, alias: Movement Date (yyyy/mm/dd), length: 30 )
• Other_Mvmt ( type: esriFieldTypeString, alias: Other Movement Dates, length: 100 )
• Field_Ver ( type: esriFieldTypeString, alias: Field Verified , length: 35 , Coded Values: [Field verified by NCGS: Field verified by NCGS] , [Field verified by Data Source 1: Field verified by Data Source 1] , [Not field verified: Not field verified] )
• Loc_Conf ( type: esriFieldTypeString, alias: Location Confidence, length: 30 , Coded Values: [Orthophotography: Orthophotography] , [Non-orthorectifed photography: Non-orthorectifed photography] , [LiDAR: LiDAR] , ...5 more... )
• SM_State ( type: esriFieldTypeString, alias: State of Activity, length: 25 , Coded Values: [Active: Active] , [Reactivated: Reactivated] , [Suspended: Suspended] , ...5 more... )
• SM_Style ( type: esriFieldTypeString, alias: Style of Activity, length: 12 , Coded Values: [Single: Single] , [Complex: Complex] , [Composite: Composite] , ...2 more... )
• SM_Rate_1 ( type: esriFieldTypeString, alias: SM Rate 1, length: 28 , Coded Values: [Extremely rapid (>5 m/sec): Extremely rapid (>5 m/sec)] , [Very rapid (>3 m/min): Very rapid (>3 m/min)] , [Rapid (>1.8 m/hr): Rapid (>1.8 m/hr)] , ...4 more... )
• SM_Mat_1 ( type: esriFieldTypeString, alias: SM Material 1, length: 20 , Coded Values: [Debris: Debris] , [Earth: Earth] , [Rock: Rock] , ...1 more... )
• SM_Type_1 ( type: esriFieldTypeString, alias: SM Type 1, length: 25 , Coded Values: [Blowout: Blowout] , [Creep: Creep] , [Fall: Fall] , ...6 more... )
• SM_Rate_2 ( type: esriFieldTypeString, alias: SM Rate 2, length: 28 , Coded Values: [Extremely rapid (>5 m/sec): Extremely rapid (>5 m/sec)] , [Very rapid (>3 m/min): Very rapid (>3 m/min)] , [Rapid (>1.8 m/hr): Rapid (>1.8 m/hr)] , ...4 more... )
• SM_Mat_2 ( type: esriFieldTypeString, alias: SM Material 2, length: 20 , Coded Values: [Debris: Debris] , [Earth: Earth] , [Rock: Rock] , ...1 more... )
• SM_Type_2 ( type: esriFieldTypeString, alias: SM Type 2, length: 25 , Coded Values: [Blowout: Blowout] , [Creep: Creep] , [Fall: Fall] , ...6 more... )
• SM_Class ( type: esriFieldTypeString, alias: SM Classification, length: 80 )
• Aspect_Az ( type: esriFieldTypeSmallInteger, alias: Aspect Azimuth , Range: [1, 360] )
• Cut_Az ( type: esriFieldTypeSmallInteger, alias: Cut Azimuth , Range: [1, 360] )
• OrgGrndSlp ( type: esriFieldTypeSmallInteger, alias: Original Ground Slope , Range: [0, 90] )
• ModGrndSlp ( type: esriFieldTypeSmallInteger, alias: Modified Ground Slope , Range: [0, 90] )
• Rupture_L ( type: esriFieldTypeSmallInteger, alias: Rupture Length (ft) )
• Rupture_W ( type: esriFieldTypeSmallInteger, alias: Rupture Width (ft) )
• Rupture_D ( type: esriFieldTypeSingle, alias: Rupture Depth (ft) )
• Rupt_Surf ( type: esriFieldTypeString, alias: Rupture Surface, length: 25 , Coded Values: [Within one soil horizon: Within one soil horizon] , [At soil-soil contact: At soil-soil contact] , [At soil-rock contact: At soil-rock contact] , ...2 more... )
• Max_Soil_D ( type: esriFieldTypeSingle, alias: Max Observed Soil Depth (ft) )
• Slp_Config ( type: esriFieldTypeString, alias: Slope Configuration, length: 40 , Coded Values: [Cut slope - Not road related: Cut slope - Not road related] , [Embankment - Not road related: Embankment - Not road related] , [Road cut: Road cut] , ...4 more... )
• Geom_Shape ( type: esriFieldTypeString, alias: Geomorphic Shape, length: 10 , Coded Values: [Concave: Concave] , [Convex: Convex] , [Hollow: Hollow] , ...1 more... )
• Geom_Struc ( type: esriFieldTypeString, alias: Geomorphic Structure, length: 20 , Coded Values: [Dip slope: Dip slope] , [Oblique slope: Oblique slope] , [Scarp slope: Scarp slope] )
• Land_Cover ( type: esriFieldTypeString, alias: Land Cover, length: 30 , Coded Values: [Bare ground: Bare ground] , [Conifer forest: Conifer forest] , [Crop: Crop] , ...13 more... )
• Max_Tree ( type: esriFieldTypeSingle, alias: Max Tree Diameter in IZ (ft) )
• Grnd_Water ( type: esriFieldTypeString, alias: Ground Water, length: 40 , Coded Values: [None observed: None observed] , [Soil-sediment seep/spring: Soil-sediment seep/spring] , [Bedrock seep/spring: Bedrock seep/spring] , ...1 more... )
• Surf_Water ( type: esriFieldTypeString, alias: Surface Water, length: 40 , Coded Values: [None observed: None observed] , [Modified slope drainage into SM: Modified slope drainage into SM] , [Natural drainage into SM: Natural drainage into SM] , ...2 more... )
• Road_Num ( type: esriFieldTypeString, alias: Road Number, length: 20 )
• Road_Name ( type: esriFieldTypeString, alias: Road Name, length: 255 )
• Head_Elev ( type: esriFieldTypeSmallInteger, alias: Head Scarp Elevation (ft) , Range: [0, 6700] )
• Unit_1985 ( type: esriFieldTypeString, alias: 1985 Geologic Map Unit, length: 50 )
• Other_Unit ( type: esriFieldTypeString, alias: Other Geologic Map Unit, length: 50 )
• Other_Map ( type: esriFieldTypeString, alias: Other Geo Map Reference, length: 255 )
• Soil_Unit ( type: esriFieldTypeString, alias: Soil Map Unit, length: 50 )
• Soil_Map ( type: esriFieldTypeString, alias: Soil Map Reference, length: 255 )
• Data_Src1 ( type: esriFieldTypeString, alias: Data Source 1, length: 255 )
• Data_Src2 ( type: esriFieldTypeString, alias: Data Source 2, length: 255 )
• Pictures ( type: esriFieldTypeString, alias: Pictures, length: 3 , Coded Values: [Yes: Yes] , [No: No] )
• Photo_Vint ( type: esriFieldTypeSmallInteger, alias: Earliest Air Photo Vintage (yyyy) , Range: [1920, 2050] )
• Mvmnt_Hist ( type: esriFieldTypeString, alias: Movement History, length: 255 )
• Damage ( type: esriFieldTypeString, alias: Damage Impacts, length: 255 )
• Remarks ( type: esriFieldTypeString, alias: Remarks, length: 255 )
• Remarks_2 ( type: esriFieldTypeString, alias: Remarks 2, length: 255 )
• Longitude ( type: esriFieldTypeDouble, alias: Longitude )
• Latitude ( type: esriFieldTypeDouble, alias: Latitude )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• Service_Request ( type: esriFieldTypeString, alias: Service_Request, length: 4 , Coded Values: [Yes: Yes] , [No: No] )
• Service_Request_Type ( type: esriFieldTypeString, alias: Service_Request_Type, length: 12 , Coded Values: [Routine: Routine] , [Urgent: Urgent] , [Emergency: Emergency] )
• Requesting_Client ( type: esriFieldTypeString, alias: Requesting_Client, length: 150 )
• Fatalities ( type: esriFieldTypeSmallInteger, alias: Fatalities )
• Injured ( type: esriFieldTypeSmallInteger, alias: Injured )
• Casualty_Remarks ( type: esriFieldTypeString, alias: Casualty_Remarks, length: 500 )
• SHAPE ( type: esriFieldTypeGeometry, alias: SHAPE )
• Confidence ( type: esriFieldTypeSmallInteger, alias: Confidence , Coded Values: [1: 1] , [2: 2] , [3: 3] , ...2 more... )
• MapMethod ( type: esriFieldTypeString, alias: Mapping Method, length: 50 , Coded Values: [Air photo: Air photo] , [LiDAR: LiDAR] , [Field work: Field work] , ...3 more... )

Relationships:

• Feature SM Outlines (0) -- Related To: Landslide Footprints (1)

Supported Operations:   Query   Query Attachments   Query Analytic   Query Related Records   Generate Renderer   Return Updates

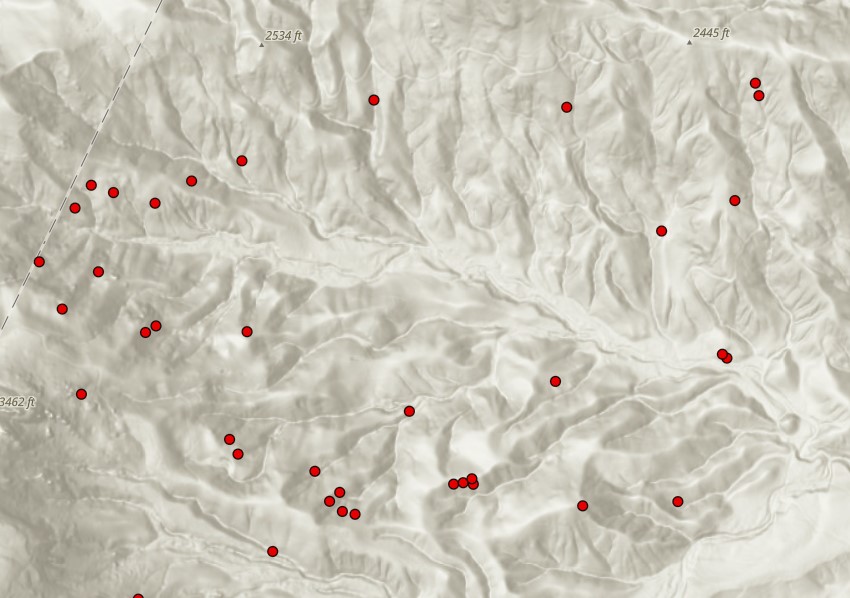

  Iteminfo   Thumbnail   Metadata
